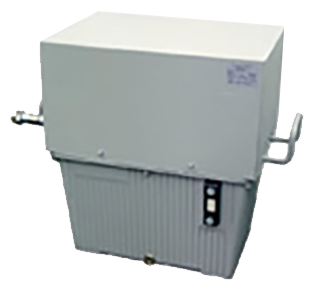

OW4002是4.2kW水/油冷却器, 闭环式电路控制,用于冷却双极X射线管。空气冷却油进行热交换器冷却，而水压受到可调节旁通阀的限制。
OW4002配备有可调安全流量开关和超温开关，可提供各种方式来连接X射线系统。
| Dimensions (mm) W x H x D | 551 x 621 x 350mm |
|---|---|
| Weight (without coolant) | 45kg |
| Coolant Capacity | 4200W/23L |
| Coolant Type | Oil |
| Performance Data |
|
| Cooling Capacity @ temperature difference of 20° | 4.2kW |
| Flow Rate | >17.0 lpm @ 3.5 bar |
| Frequency | 50/60Hz |
| Input Voltage | 230VAC |
| Noise Level @ 1m distance | <60 db(A) |
| Environmental Specifications |
|
| Operating Temperature | +10°C – +40°C |
| Storage Temperature | -40°C – +70°C (empty) |
| Air Humidity | 20% – 80% (non condensing) |
| Settings |
|
| Maximum forward pressure | 9 bar ± 0.5 bar |
| Flow switch open | 14l/pm |
| Temperature switch open | 55°C |
